In the parent chapter we briefly explored Google Maps' native transit layer.
In this chapter, we'll attempt to replicate this layer using publicly available GeoJSON data and learn a thing or two about Google Maps' interactive data layers.
I'm a city planner analyzing the proximity of New York City subway lines to new developments.
To start off, I'd like to view and highlight the metro lines:
As you saw in the chapter on ๐ฆพ Turf.js & Exporting to GeoJSON , the GeoJSON format is a popular mechanism to encode and share geospatial data.

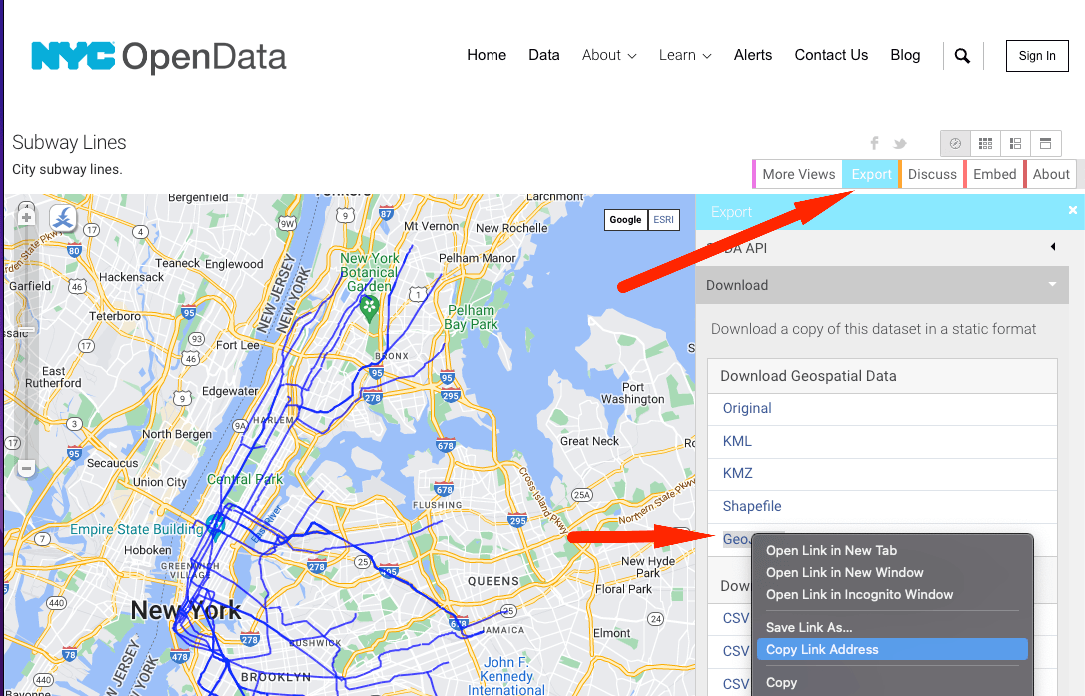

Many cities, agencies, and non-profits publish valuable GeoJSON data online. In your case, the city agency of choice would be NYC Open Data . Searching for โsubway linesโ leads to a promising dataset. From there, under โExportโ, you'll need to copy the GeoJSON URL:
To quickly inspect the geometries and properties of this small dataset, you can use geojson.io .
Indeed, you're dealing with a FeatureCollection containing features of the form:
{
"type": "Feature",
"properties": {
"name": "A-C",
"url": "http://web.mta.info/nyct/service/",
"rt_symbol": "A",
"objectid": "800",
"id": "2000251",
"shape_len": "2714.92372395"
},
"geometry": {
"type": "LineString",
"coordinates": [
[-73.88075000161994, 40.674129666468296],
[-73.89035800079188, 40.67270966767174]
]
}

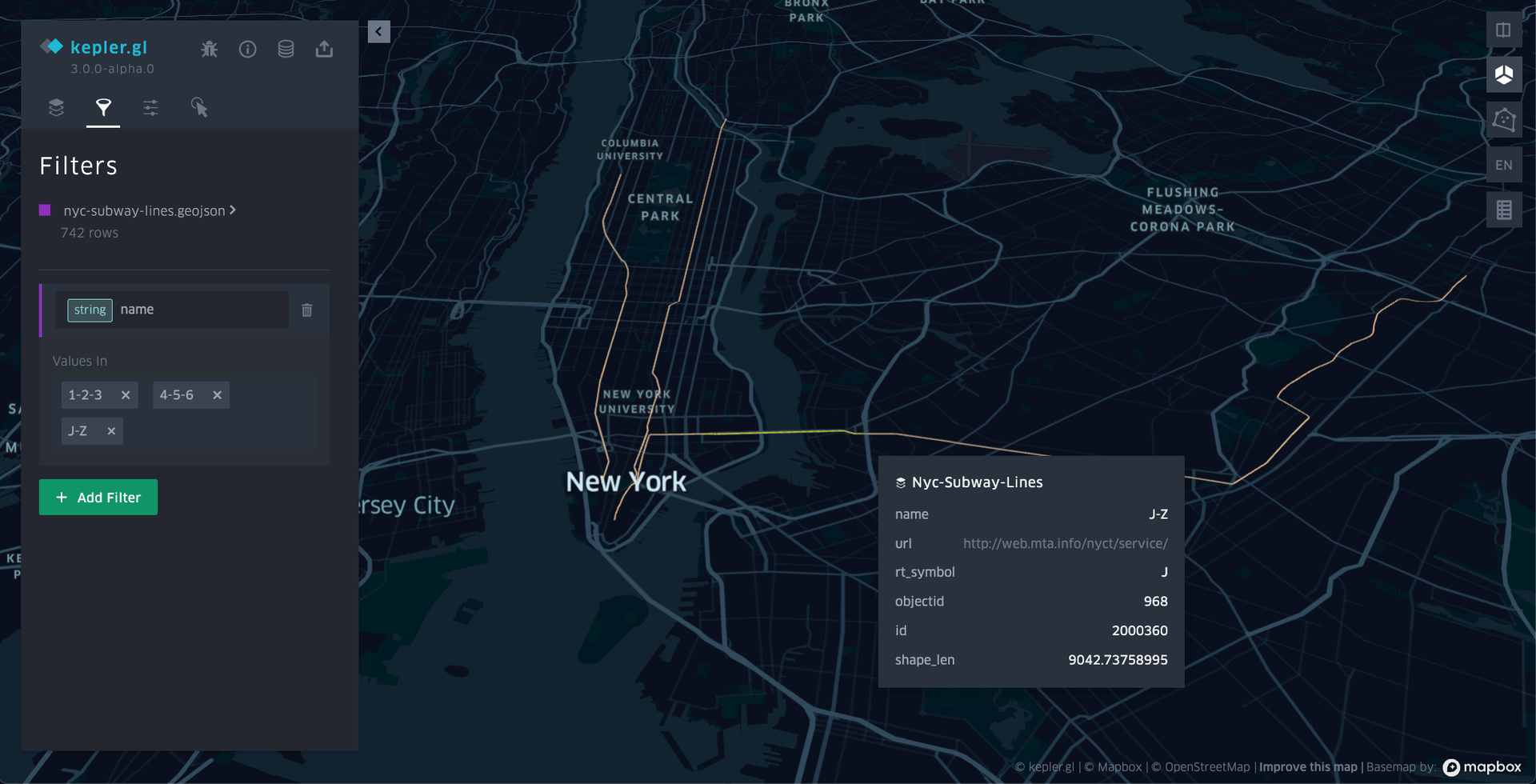

} If the file were bigger (in the 10Mb+ range), you'd be better off with a tool like kepler.gl . Kepler.gl is a super fast, WebGL-powered online tool that lets you visualize, pick, filter, search and share geo data in various formats with ease:
Once you've familiarized yourself with the structure of the GeoJSON file, it's time to connect it to a Google Map via the map.data.loadGeojson() method:
map.data.loadGeoJson(
"https://data.cityofnewyork.us/api/geospatial/3qz8-muuu?method=export&format=GeoJSON",
); Some public-facing GeoJSON endpoints may block such requests due to CORS .

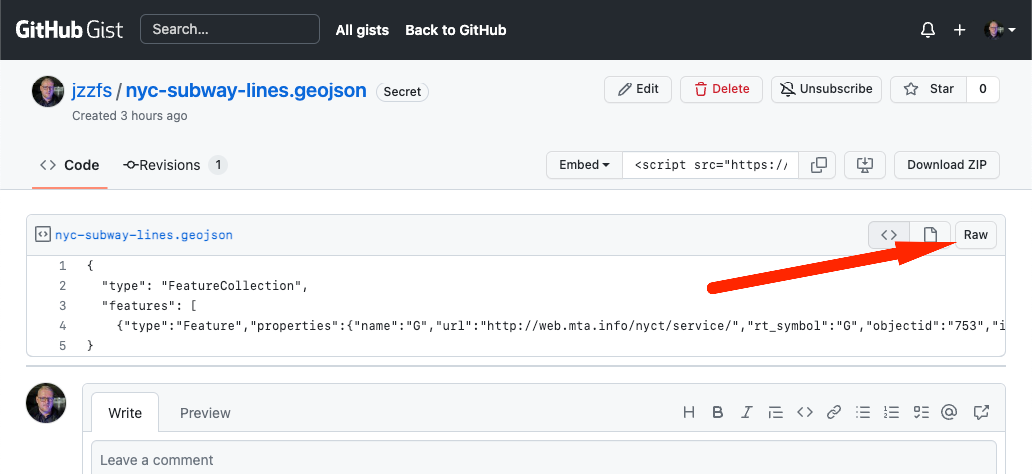

If the desired dataset is static (doesn't change over time), you can download and store it in a Github Gist or on your own server.
If the dataset changes over time, you can fetch the GeoJSON separately and pass it onto the map canvas via map.data.addGeoJson .

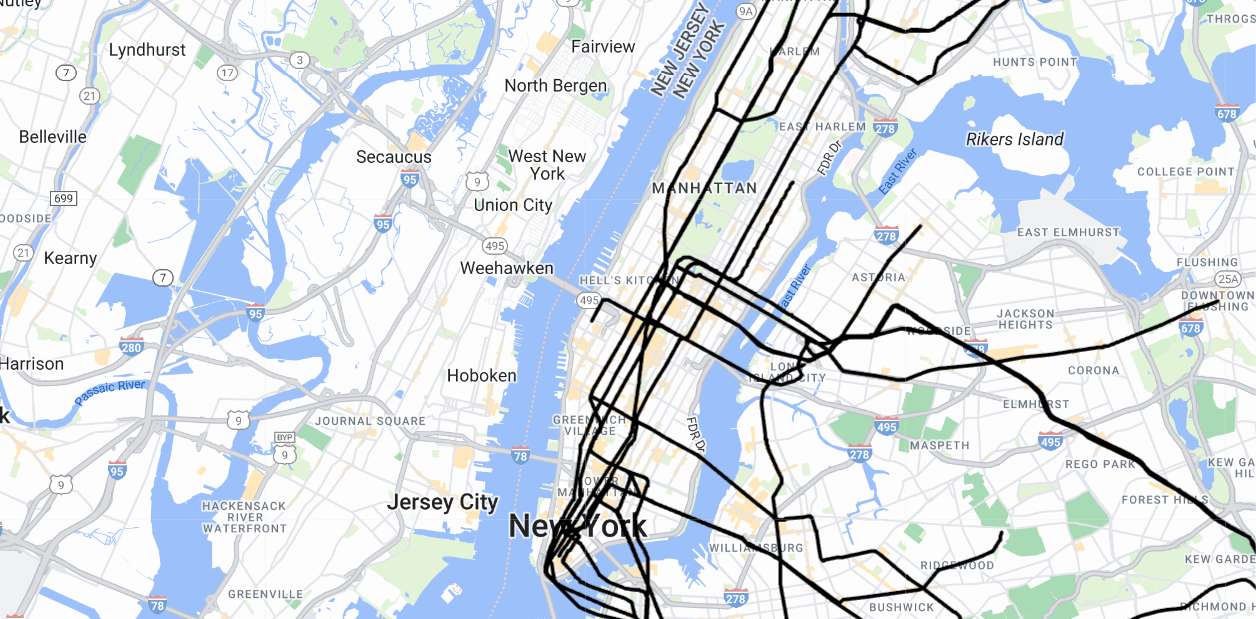

Once the data has loaded, you'll see the LineString geometries in the default black stroke :
Since the GeoJSON is composed of multiple features , you can apply custom styling to each feature independently using familiar properties like strokeColor and strokeWeight:
map.data.setStyle((feature) => {
return {
// randomizing the stroke color for illustration purposes
strokeColor: Math.random() < 0.5 ? "orange" : "purple",
strokeWeight: 4,
};
});

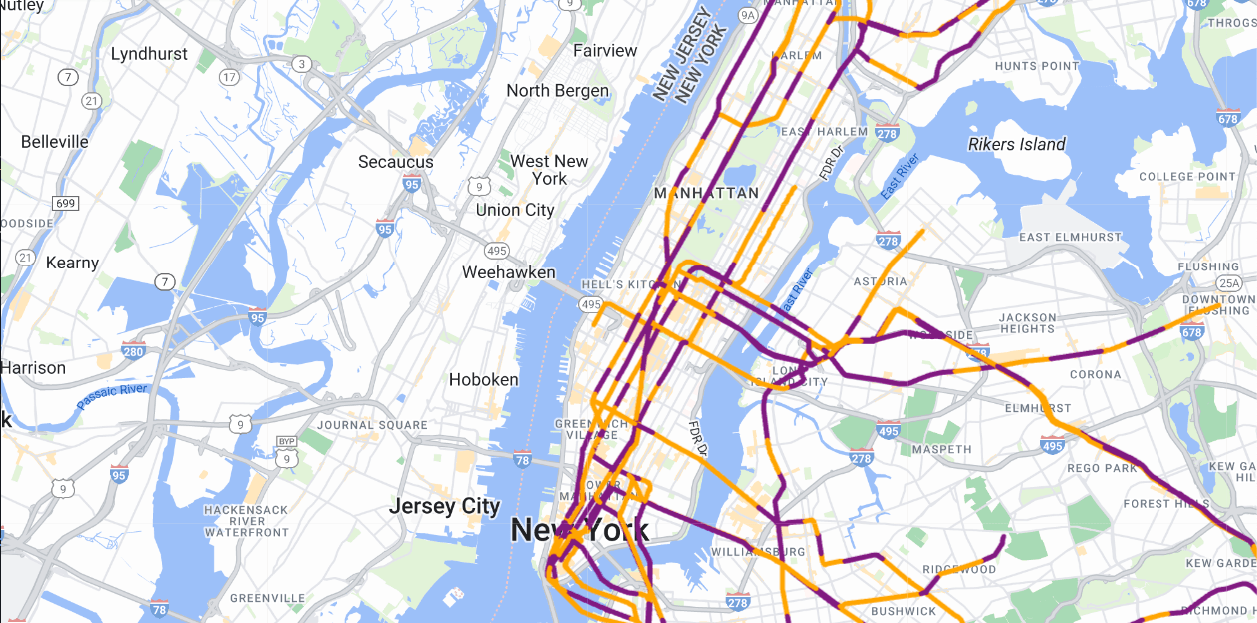

Notice that the subway lines aren't complete LineStrings but rather separate line segments. Still, you'll need grouped segments in order to display continuous lines.
At this point you essentially have two options:
You guessed it โ option #2 it is.
To display continuous subways lines, you'll need to style each line segment according to its service line color . A quick google session yields the following JSON spec :
const subwayLinesSpec = [
{
"m": "NYCT Subway",
"line": "A/C/E", <----
"hex": "2850AD", <----
"pantone": "PMS 286",
"cmyk": "c100;m56"
},
{...}
] Nice. You've got the hex color per subway line.
Still, the line in here contains slashes, the line name in the GeoJSON contains dashes.
The hex color lookup utility will thus extract the first line symbol from name and look for its occurrence in line:
export const getLineColor = (name: string) => {
const firstLineLetter = name.split("-")[0];
const hex = subwayLinesSpec.find((c) =>
c.line.includes(firstLineLetter),
)?.hex;
return "#" + hex;
}; Employing this utility in the .setStyle() callback:
map.data.setStyle((feature) => {
const strokeColor = getLineColor(feature.getProperty("name"));
return {
strokeColor,
strokeWeight: 3,
};

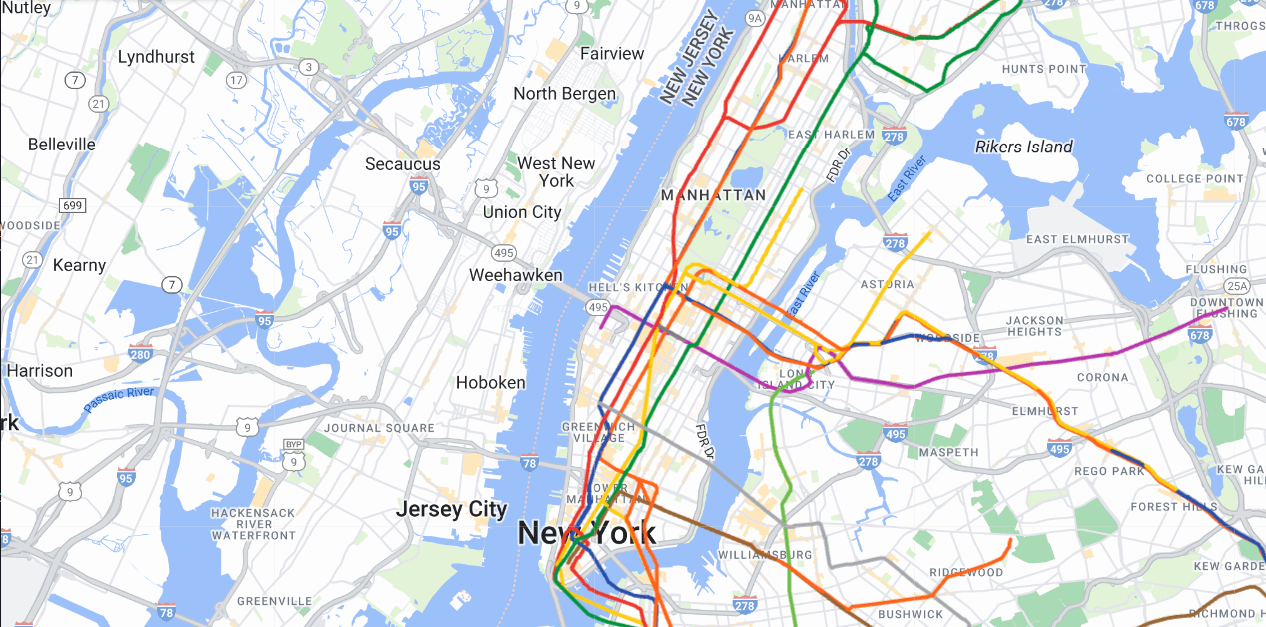

});produces promising results:
The principles in ๐ข 3. Interactivity & Events apply to data layers as well.
To highlight a subway line upon hover, you can reach for the mouseover event :
map.data.addListener("mouseover", (event: google.maps.Data.MouseEvent) => {
const { feature } = event;
// the feature corresponds to your line segment
// now what ???
});In pseudocode, you'll need to:
- Extract the currently hovered
LineString's line name. - Iterate all other segments and determine if they โbelongโ to the same line.
- Update the
strokeWeightandzIndexaccordingly to bring the line to the foreground.
In concrete terms:
map.data.addListener("mouseover", (event: google.maps.Data.MouseEvent) => {
const segmentLineName = event.feature.getProperty("name");
map.data.setStyle((feature: google.maps.Data.Feature) => {
const anyLineName = feature.getProperty("name");
const isLineHighlighted =
segmentLineName === anyLineName ||
anyLineName.includes(segmentLineName.split("-")[0]);
const strokeColor = getLineColor(anyLineName);
const strokeWeight = isLineHighlighted
? DEFAULT_STROKE_WEIGHT + 3
: DEFAULT_STROKE_WEIGHT;
const zIndex = isLineHighlighted ? 100 : 1;
return { strokeColor, strokeWeight, zIndex };
});
}); To undo the highlighting upon mouseout, you'd simply revert to the default strokeWeight, color, and zIndex:
map.data.setStyle((feature: google.maps.Data.Feature) => {
const anyLineName = feature.getProperty("name");
const strokeColor = getLineColor(anyLineName);
return { strokeColor, strokeWeight: DEFAULT_STROKE_WEIGHT, zIndex: 1 };
}); As you've learned in Bonus: Positioning a fully custom DOM tooltip , it's quite easy to covert the mouse cursor's position at a given latitude & longitude to the corresponding DOM [x,y] coordinates. The mouseover event exposes the latLng property so placing a custom tooltip becomes an exercise in HTML:
export const showLineTooltip = ({
map,
latLng,
lineName,
}: {
map: google.maps.Map;
latLng: google.maps.LatLng;
lineName: string;
}) => {
const { x, y } = fromLatLngToPoint(latLng, map);
const tooltip = document.getElementById("lineTooltip");
tooltip.innerHTML = `
Line ${lineName}
`;
tooltip.setAttribute(
"style",
`position: fixed;
display: block;
font-family: system-ui;
padding: 8px;
border-radius: 8px;
background: ${getLineColor(lineName)};
color: white;
top: ${y}px;
left: ${x}px;`,
);
};
// usage
map.data.addListener("mouseover", (event: google.maps.Data.MouseEvent) => {
const segmentLineName = event.feature.getProperty("name");
showLineTooltip({
map,
latLng: event.latLng,
lineName: segmentLineName,
});
}); Hiding the tooltip upon mouseout is equally straightforward:
export const hideLineTooltip = () => {
document
.getElementById("lineTooltip")
.setAttribute("style", "display: none;");
};
// usage
map.data.addListener("mouseout", () => {
hideLineTooltip();
});The per-feature styling and interactions presented in this chapter are quite handy for lots of typical use cases that don't involve large datasets.
In the next chapter, we'll explore more advanced data visualization capabilities with ๐งโโ๏ธ WebGL, Deck.gl, & CARTO .
